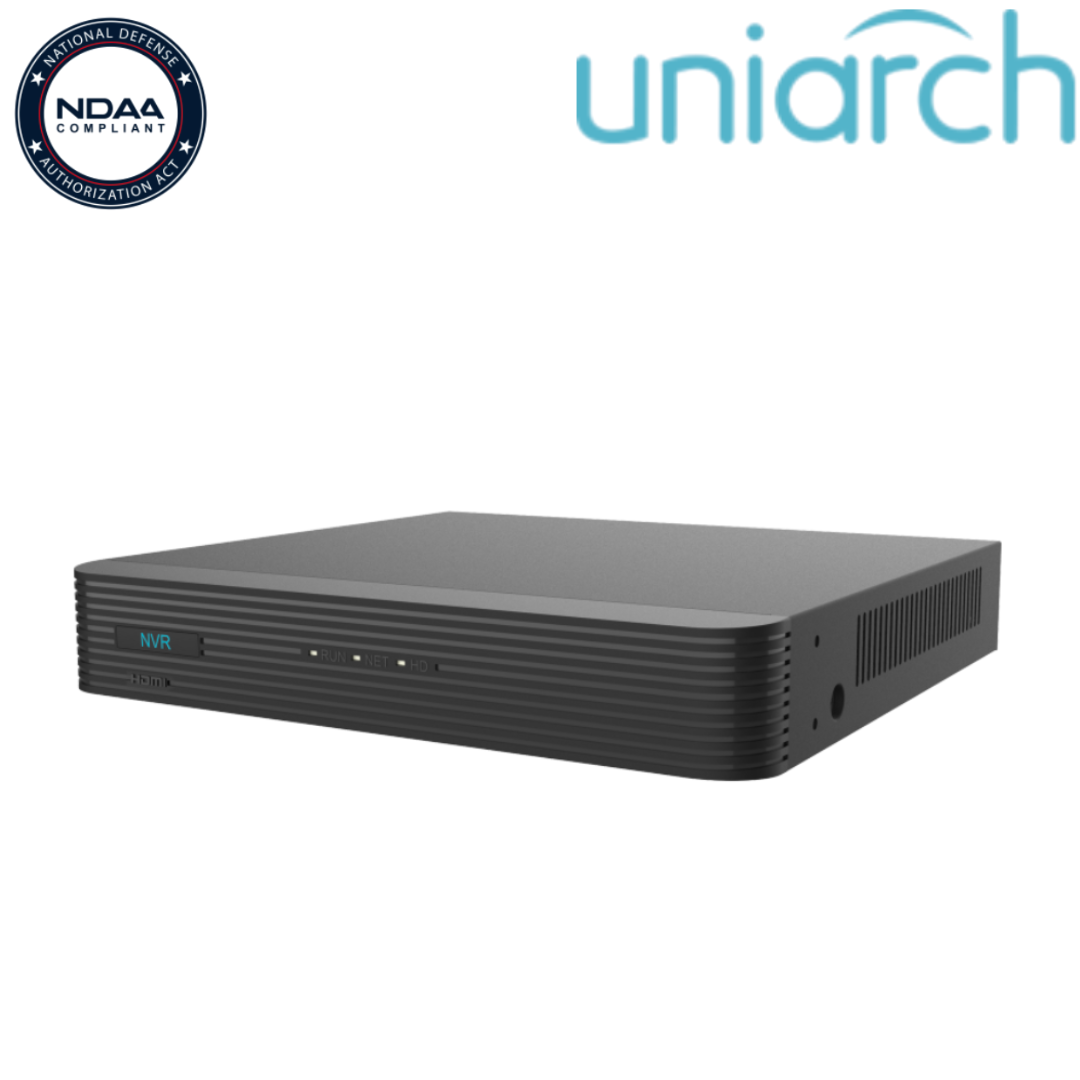

4-Channel PoE Network Video Recorder NVR-104E2-P4
4-Channel PoE Network Video Recorder NVR-104E2-P4
The NVR-104E2-P4 is a compact and reliable network video recorder, perfect for small to medium surveillance systems. Supporting 4 IP channels in high definition and equipped with 4 built-in PoE ports, it simplifies installation by powering cameras directly without additional adapters. With stable storage, remote viewing, and smart video management, it is the ideal choice for homes, offices, and small businesses seeking cost-effective and dependable security.
Key Specifications:
-
Supports up to 4 IP channels
-
Recording resolution up to 1080p/4MP (depending on camera)
-
4 built-in PoE ports for direct camera connection and power supply
-
1 SATA hard drive bay up to 6 TB (depending on model)
-
H.265/H.264 video compression for efficient storage
-
Remote access via PC, smartphone, or tablet
-
HDMI and VGA video outputs
-
User-friendly interface with centralized management
Product features
Product features
Specifications
Camera
Image Sensor 1/2.7" GC5623 CMOS
Min. Illumination Color: 0.05lux @(F1.6), 0 lux with IR light
Shutter Speed 1/10 s to 1/10,000 s
Slow Shutter Yes
Day & Night IR CUT Filter
Digital Noise Reduction 3D DR 2D DNR
WDR 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0* to 360°
Lens
Focal Length Fixed focal lens,dual lens, 2.8 mm
Aperture F1.6
Focus Fixed
Focus Length & FOV 2.8 mm, horizontal FOV: 160", vertical FOV: 70°
Lens Mount M12
Illuminator
White Light & IR Range Up to 30 m
Smart Supplement Light Yes
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
H.264 Type High Profile/Main Profile/Base Profile
H.265 Type High Profile/Main Profile/Base Profile
H.265+ High Profile/Main Profile/Base Profile
Smart Feature-set
Smart Event Human detection
Basic Event Motion detection
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, Email
Max. Resolution 4096 × 1944
Main Stream 50Hz: 20 fps 4096 × 1944
60Hz: 20 fps 4096 × 1944
Sub-Stream 50Hz: 20 fps 1024 x 480: 20 fps 768 × 360
60Hz: 20 fps 1280 × 360: 20 fps 768 × 360
Image Enhancement WDR/HDR/3D DNR/2D DR/HLC/BLC
Image Setting Sotware ore satrosen, brightness, contrast, sharpness, and white balance adjustable by client
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support local storage and NAS (NFS, SMB/CIFS)
Protocols HTTP, RTSP, DHCP, FTP, NTP,ONVIF, P2P, SMITP,RTMP
Client AJ_Client, AC18Pro, Videolink
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Built-in Speaker Power: 3W.MAX. Sound pressure lever:10cm: 100dB.
Reset Key Yes
On-Board Storage Built-in memory card slot, support microSD card,up to 512GB
General
Operating Conditions -30 °C to +65 °C, humidity 95% or less (non-condensing)
Web Client Language
14 languages: English,Russian, German,Italian, Turkish, Korean,Japanese, Traditional Chinese,
Simple Chinese, Ukrainian, Portuguese,Croatian, Polish, Farsi
cuen Consumption and DC 12V, 1 A, max. 10 W ® 5.5X2.1 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W
Protection Level IP66-Each Camera has been tested waterproof
Material Front cover:metal, body:plastic, bracket: plastic
Dimensions Camera: 137.5 × 100mm (5.41" × 3.94")
Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )
Weight Apporx.460g(1.01 lb)
With Package Weight Apporx. 600g(1.32 lb)
Available Model
PG2386IRCS-P(2.8mm 160° /
