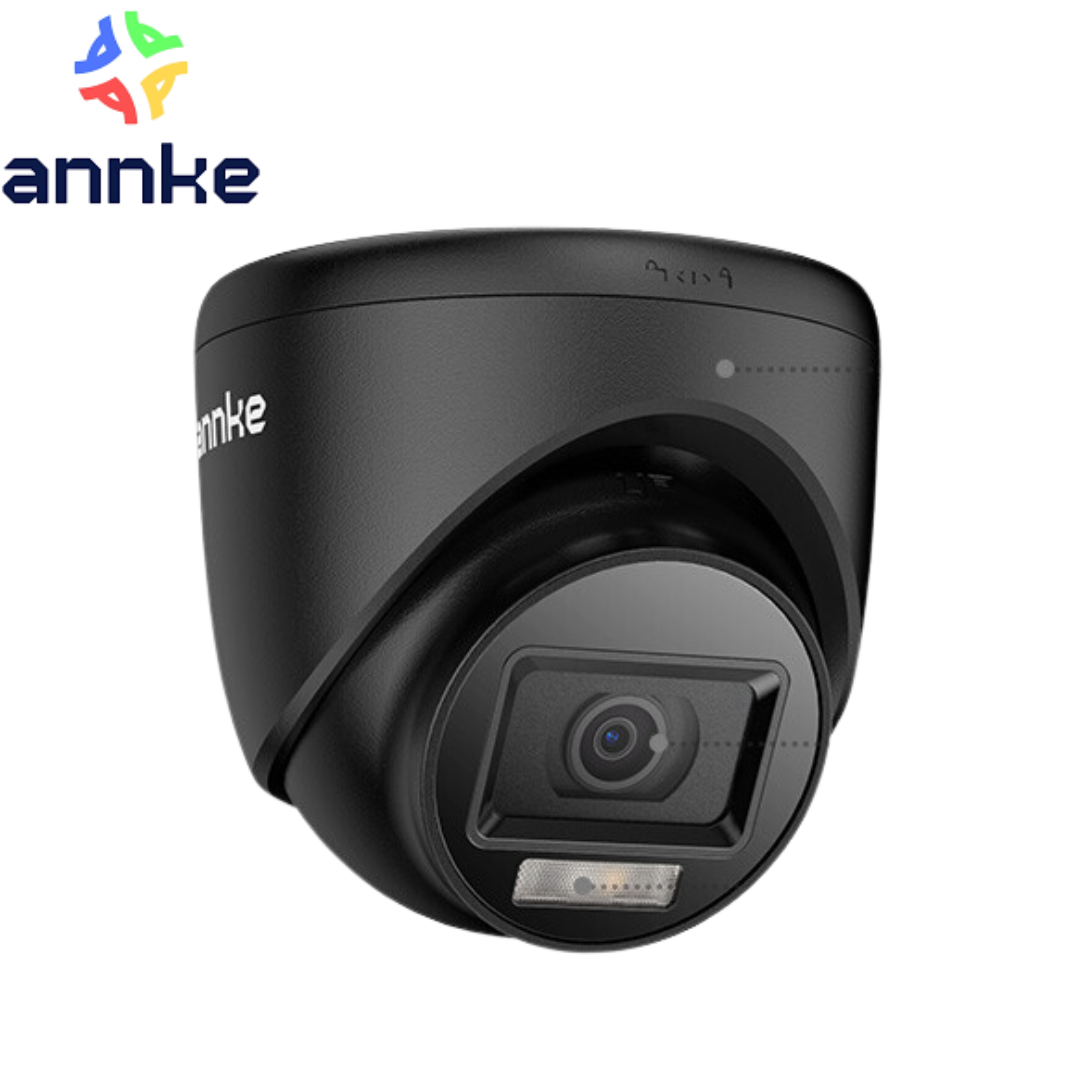

ANNKE 2MP Model:CT1GK IP67. Color Night Vision. Color/Black
ANNKE 2MP Model:CT1GK IP67. Color Night Vision. Color/Black
| Camera | ||||
| Camera | Image sensor | 2MP CMOS Image Sensor | Video Resolution | 1920 (H) × 1080 (V) |
| Signal System | PAL/NTSC | Min.Illumination | Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Frame Rate | TVI: 1080P @ 30 fps, 1080P @ 25 fps | Lens | 3.6mm | |
| Supplement Light type | White Light & IR | Supplement Light Range | IR : Up to 20 m, white Light : Up to 20 m | |
| Supplement Light Mode | IR light works normally, and it switches to white light when human or vehicle are detected at night. | |||
| Wide Dynamic Range | Digital WDR | Angle of View | Horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92° | |
| IR Cut Filter | Yes | Video Output | BNC, switchable TVI/AHD/CVI/CVBS | |
| General | Housing | Metal&Plastic | Color | Black |
| Operating Power | DC12V | Operating Temperature | '-40 °F – 140 °F /-40 °C – 60 °C | |
| Indoor/Outdoor | Indoor/Outdoor | Weatherproof Rating | IP67 | |
| Dimension (L x W x H) | Ø85 mm × 84.6 mm(3.35" × 3.33 ") | Weight | Approx. 205 g (0.45 lb.) | |
Product features
Product features
Specifications
Camera
Image Sensor 1/2.7" GC5623 CMOS
Min. Illumination Color: 0.05lux @(F1.6), 0 lux with IR light
Shutter Speed 1/10 s to 1/10,000 s
Slow Shutter Yes
Day & Night IR CUT Filter
Digital Noise Reduction 3D DR 2D DNR
WDR 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0* to 360°
Lens
Focal Length Fixed focal lens,dual lens, 2.8 mm
Aperture F1.6
Focus Fixed
Focus Length & FOV 2.8 mm, horizontal FOV: 160", vertical FOV: 70°
Lens Mount M12
Illuminator
White Light & IR Range Up to 30 m
Smart Supplement Light Yes
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
H.264 Type High Profile/Main Profile/Base Profile
H.265 Type High Profile/Main Profile/Base Profile
H.265+ High Profile/Main Profile/Base Profile
Smart Feature-set
Smart Event Human detection
Basic Event Motion detection
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, Email
Max. Resolution 4096 × 1944
Main Stream 50Hz: 20 fps 4096 × 1944
60Hz: 20 fps 4096 × 1944
Sub-Stream 50Hz: 20 fps 1024 x 480: 20 fps 768 × 360
60Hz: 20 fps 1280 × 360: 20 fps 768 × 360
Image Enhancement WDR/HDR/3D DNR/2D DR/HLC/BLC
Image Setting Sotware ore satrosen, brightness, contrast, sharpness, and white balance adjustable by client
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support local storage and NAS (NFS, SMB/CIFS)
Protocols HTTP, RTSP, DHCP, FTP, NTP,ONVIF, P2P, SMITP,RTMP
Client AJ_Client, AC18Pro, Videolink
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Built-in Speaker Power: 3W.MAX. Sound pressure lever:10cm: 100dB.
Reset Key Yes
On-Board Storage Built-in memory card slot, support microSD card,up to 512GB
General
Operating Conditions -30 °C to +65 °C, humidity 95% or less (non-condensing)
Web Client Language
14 languages: English,Russian, German,Italian, Turkish, Korean,Japanese, Traditional Chinese,
Simple Chinese, Ukrainian, Portuguese,Croatian, Polish, Farsi
cuen Consumption and DC 12V, 1 A, max. 10 W ® 5.5X2.1 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W
Protection Level IP66-Each Camera has been tested waterproof
Material Front cover:metal, body:plastic, bracket: plastic
Dimensions Camera: 137.5 × 100mm (5.41" × 3.94")
Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )
Weight Apporx.460g(1.01 lb)
With Package Weight Apporx. 600g(1.32 lb)
Available Model
PG2386IRCS-P(2.8mm 160° /
Dimension
