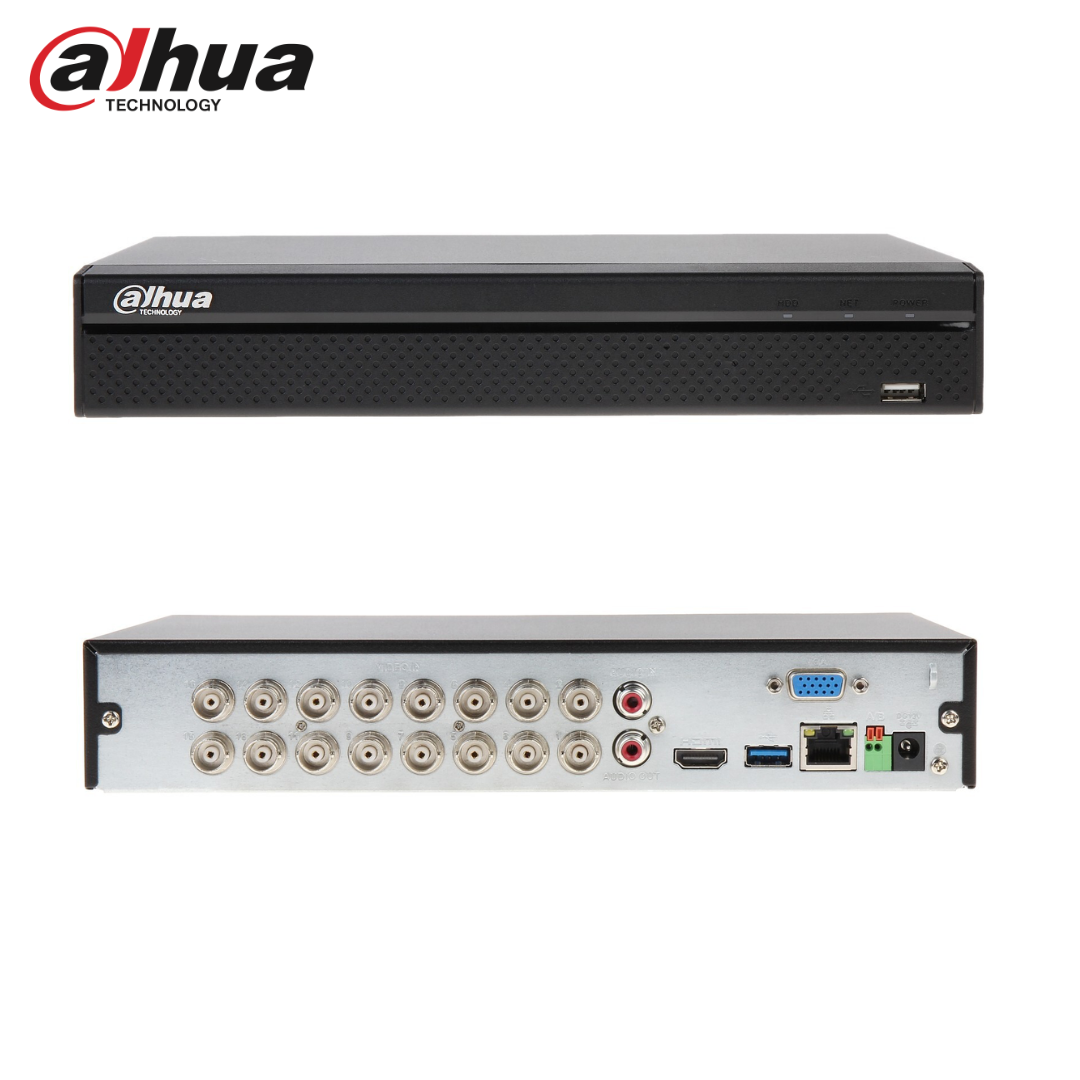

Dahua DVR 16‑ch 5MP WizSense XVR5116HS‑I3 (No HDD)
Dahua DVR 16‑ch 5MP WizSense XVR5116HS‑I3 (No HDD)
Short Description
Dahua XVR Pentabrid 16‑channel DVR supports HDCVI/AHD/TVI/CVBS/IP cameras with resolutions up to 5MP (HDCVI) and 6MP (IP). Ideal for hybrid surveillance systems with mobile access and advanced AI features.
Key Features
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 16 analog + 8 IP channels (expandable up to 24 IP)
-
5MP‑N recording with HDCVI, up to 6MP IP cameras
-
H.265+/AI Coding for optimized storage
-
Smart Motion Detection Plus (SMD+): filters humans & vehicles
-
Facial recognition and perimeter protection
-
HDMI output up to 4K, VGA up to 1080p
-
1x SATA HDD bay (supports up to 16TB) – HDD not included
-
USB 2.0 and 3.0 ports
-
Remote access via browser (Chrome/IE/Firefox), iOS/Android app
-
ONVIF compliant for IP integration
-
Compact 1U design with low power consumption
Specifications
| Attribute | Details |
|---|---|
| Model | Dahua XVR5116HS‑I3 |
| Video Inputs | 16 BNC analog inputs + up to 8 IP channels |
| Video Compression | AI Coding, H.265+/H.265/H.264+/H.264 |
| Max Resolution | Up to 5MP for HDCVI / Up to 6MP for IP |
| AI Features | SMD+, Face Detection, Perimeter Protection |
| Audio In/Out | 1 RCA input / 1 RCA output + audio over HDCVI |
| Video Output | HDMI (4K) / VGA (1080p) |
| HDD Support | 1 SATA port, supports up to 16TB HDD (not included) |
| USB Ports | 1× USB 2.0 + 1× USB 3.0 |
| Network Protocols | P2P, DDNS, FTP, Email, ONVIF, HTTPS |
| Remote Access | Web Viewer (IE9+, Chrome, Firefox), Mobile App (iOS/Android) |
| Power Supply | 12V DC, <12W (no HDD installed) |
| Dimensions / Weight | Approx. 260 × 237 × 48 mm / Net weight: 1.17 kg / Gross: 1.57 kg |
| Operating Temp / Humidity | –10°C to +55°C / 10–90% RH |
| Certifications | CE, FCC |
Product features
Product features
Specifications
Camera
Image Sensor 1/2.7" GC5623 CMOS
Min. Illumination Color: 0.05lux @(F1.6), 0 lux with IR light
Shutter Speed 1/10 s to 1/10,000 s
Slow Shutter Yes
Day & Night IR CUT Filter
Digital Noise Reduction 3D DR 2D DNR
WDR 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0* to 360°
Lens
Focal Length Fixed focal lens,dual lens, 2.8 mm
Aperture F1.6
Focus Fixed
Focus Length & FOV 2.8 mm, horizontal FOV: 160", vertical FOV: 70°
Lens Mount M12
Illuminator
White Light & IR Range Up to 30 m
Smart Supplement Light Yes
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
H.264 Type High Profile/Main Profile/Base Profile
H.265 Type High Profile/Main Profile/Base Profile
H.265+ High Profile/Main Profile/Base Profile
Smart Feature-set
Smart Event Human detection
Basic Event Motion detection
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, Email
Max. Resolution 4096 × 1944
Main Stream 50Hz: 20 fps 4096 × 1944
60Hz: 20 fps 4096 × 1944
Sub-Stream 50Hz: 20 fps 1024 x 480: 20 fps 768 × 360
60Hz: 20 fps 1280 × 360: 20 fps 768 × 360
Image Enhancement WDR/HDR/3D DNR/2D DR/HLC/BLC
Image Setting Sotware ore satrosen, brightness, contrast, sharpness, and white balance adjustable by client
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support local storage and NAS (NFS, SMB/CIFS)
Protocols HTTP, RTSP, DHCP, FTP, NTP,ONVIF, P2P, SMITP,RTMP
Client AJ_Client, AC18Pro, Videolink
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Built-in Speaker Power: 3W.MAX. Sound pressure lever:10cm: 100dB.
Reset Key Yes
On-Board Storage Built-in memory card slot, support microSD card,up to 512GB
General
Operating Conditions -30 °C to +65 °C, humidity 95% or less (non-condensing)
Web Client Language
14 languages: English,Russian, German,Italian, Turkish, Korean,Japanese, Traditional Chinese,
Simple Chinese, Ukrainian, Portuguese,Croatian, Polish, Farsi
cuen Consumption and DC 12V, 1 A, max. 10 W ® 5.5X2.1 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W
Protection Level IP66-Each Camera has been tested waterproof
Material Front cover:metal, body:plastic, bracket: plastic
Dimensions Camera: 137.5 × 100mm (5.41" × 3.94")
Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )
Weight Apporx.460g(1.01 lb)
With Package Weight Apporx. 600g(1.32 lb)
Available Model
PG2386IRCS-P(2.8mm 160° /
