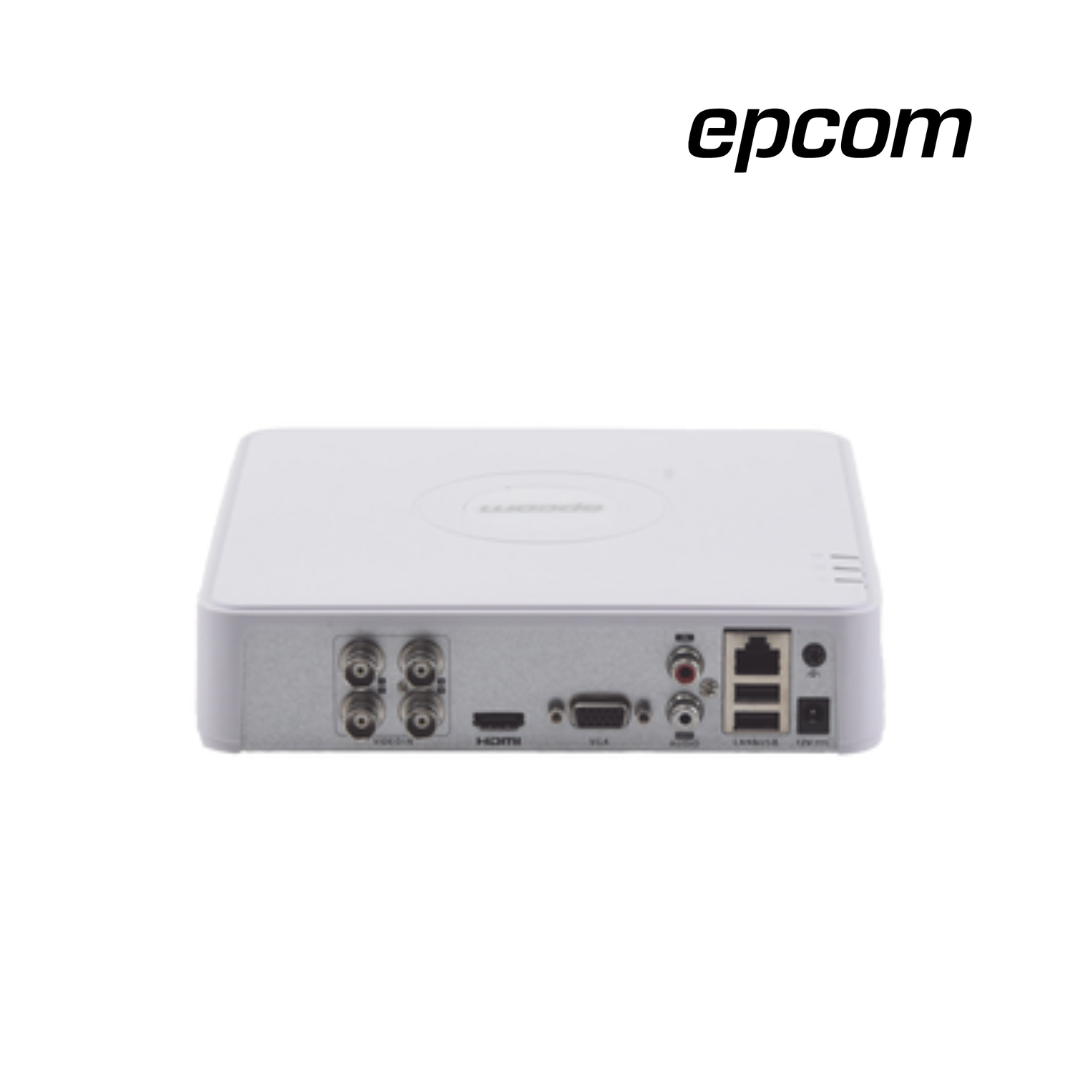

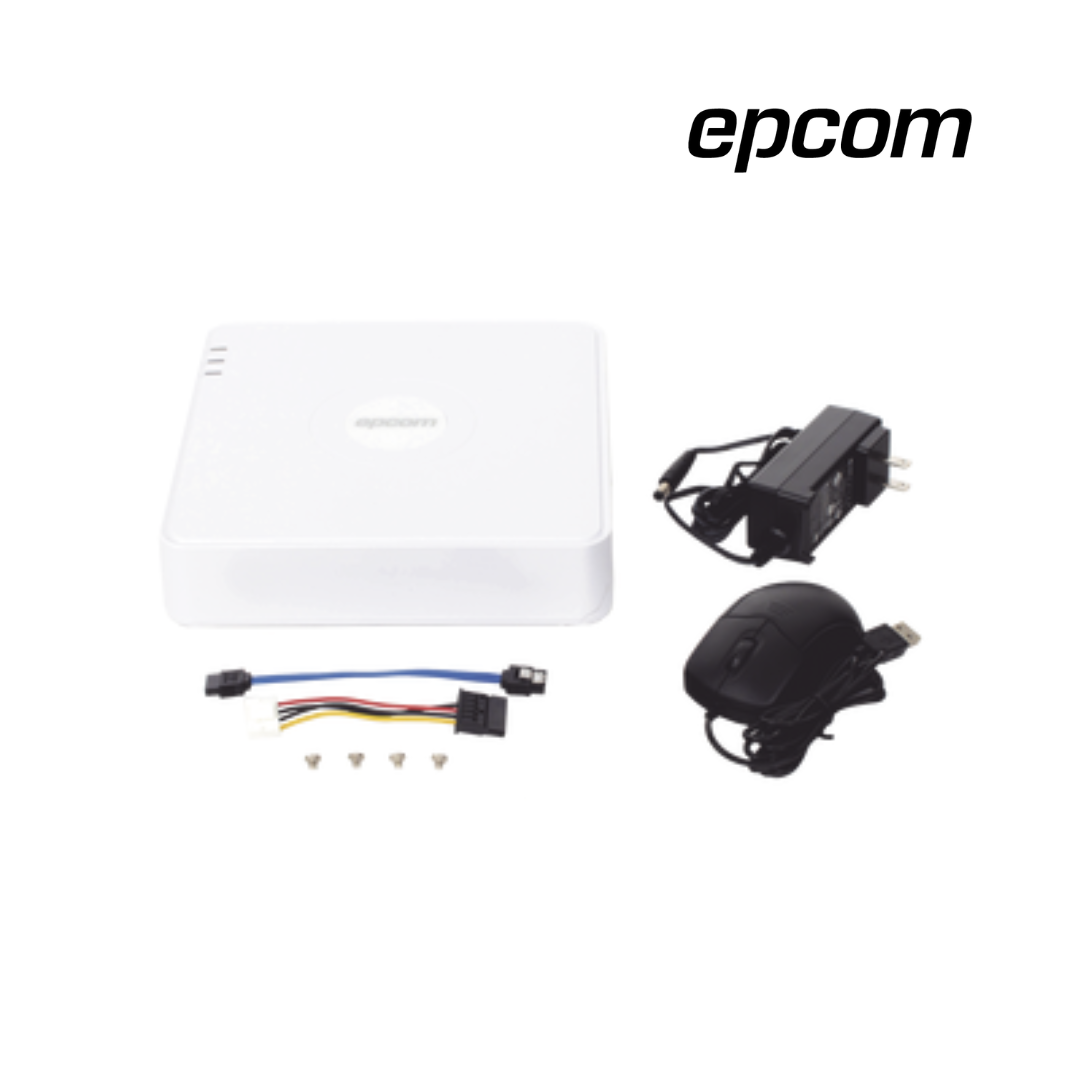

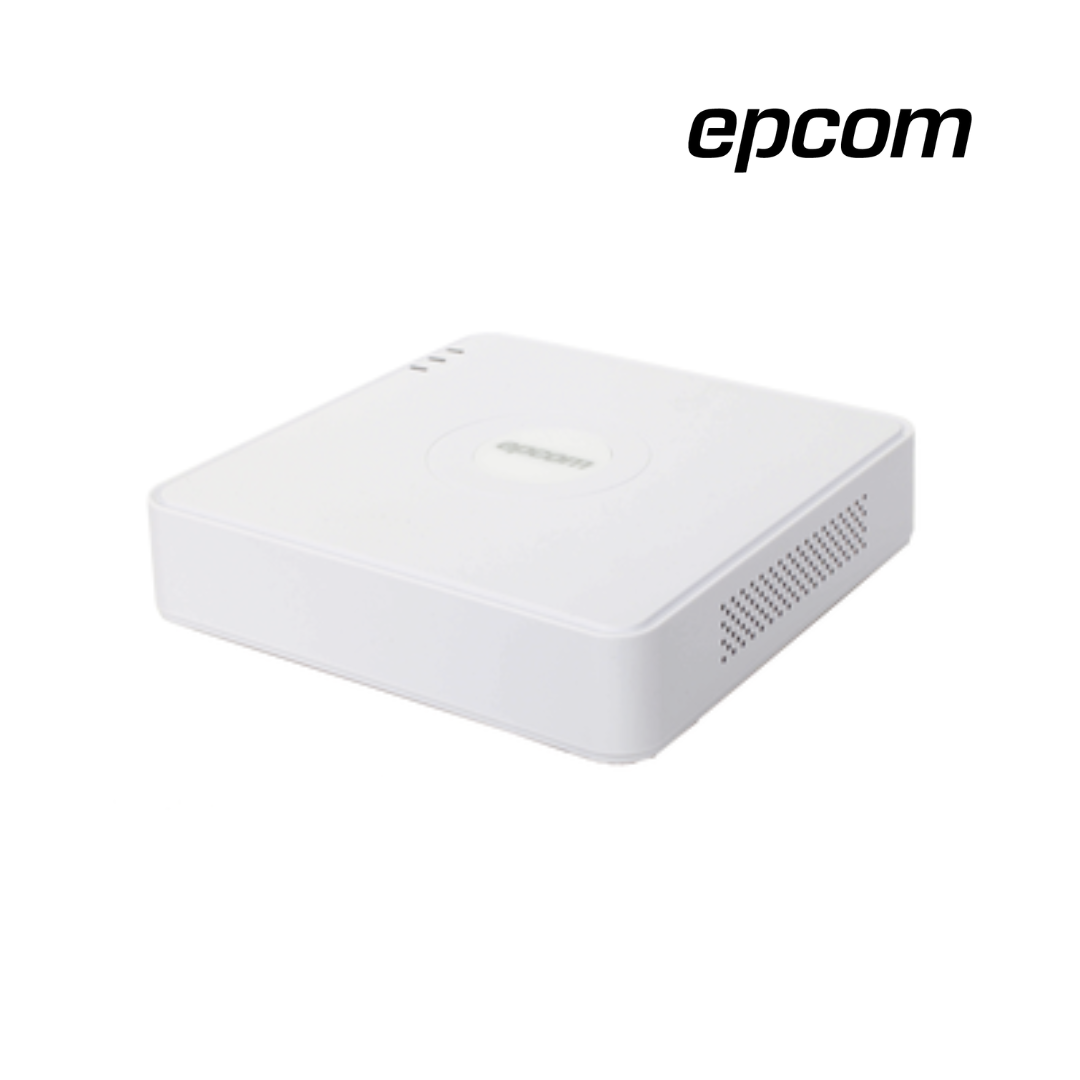

EPCOM DVR 1080p Lite / 4 Channels TURBOHD

EPCOM DVR 1080p Lite / 4 Channels TURBOHD

$49.99 USD
$49.99 USD
Sale Sold out

Features:

  • TURBOHD technology 1080P Lite Ver. 3.0

  • Support 5 technologies TVI / CVI / AHD / Analog / IP

  • Support 4 channels TURBOHD / analog + 1 channels IP = 5 channels in total.

  • 1 Audio Input / 1 Audio Output (RCA connector).

  • Support compresion H.265+ / H.265 / H.264+ / H.264.

  • Compatibility with Internet Explorer / Chrome (ietab).

  • Capacity for 1 SATA 4 TB HDD.

  • Video HDMI / VGA Simultaneous output Full HD 1080p.

  • Supports DDNS Hikvision Service.

  • Supports P2P Hik-Connect.

  • Compatible with client software iVMS-4200 (Windows, IOS), Hik-Connect (Android, iPhone, iPad, iPod Touch).

Video Channels:

  • HD-TVI: 1080p Lite / 720p@ 12 IPS.

  • CVBS: WD1@ 30 IPS.

  • AHD: 1080p Lite / 720p@ 12 IPS.

  • CVI: 1080p Lite / 720p@ 12 IPS.

  • IP: 2 Megapixel

  • BNC Connector.

Video Coding:

  • Main stream: 1080P Lite / 720p / WD1 / VGA / 4CIF.

  • Sub stream:  CIF / QCIF

  • Bitrate: 32 Kbps up to 6 Mbps.

Video Output:

  • Video de HDMI and VGA simultaneous output.

  • Supported Resolutions: 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768.

Recording:

  • Recording with automatic overwriting.

  • Configurable to start recording with only one click.

  • Recording programming through calendar, manual, or event.

Search and Playback:

  • Instant playback of a camera in live Multi-Vista mode.

  • Simultaneous synchronous 4-channel playback at 1080p Lite in forward/backward.

  • Local and remote playback, with log or event search.

  • Recording Identification through tags and playback through tags.

  • Important segment block to avoid overwriting.

Events:

  • Audible alert, Pop-Up, e-mail notification, and notification to the monitoring center when an event is triggered.

  • Movement detector alarm, camera block, and disconnection, configurable by channel.

  • Monitor HDD status, network, entries, and camera status with remote notifications.

Network:

  • 6 simultaneous users.

  • Supports Main and Sub Stream.

  • Supported Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS.

Interface:

  • 1 Network Port: RJ-45 10/100 Mbps.

  • 2 USB 2.0 Ports (Supports Mouse, included).

Physical and Electrical Characteristics:

  • Power Supply: 12 VDC (Included)

  • Consumption: Max. 8 W.

  • Operating Temperature: 14 ~ 131°F (-10 ~ 55 ºC).

  • Dimensions: 7.87 x 7.87 x 1.77" (200 x 200 x 45 mm).

  • Weight: 1.76 lb (800 g).

  • 5 year warranty.

Product features

Specifications
Camera
Image Sensor 1/2.7" GC5623 CMOS
Min. Illumination Color: 0.05lux @(F1.6), 0 lux with IR light
Shutter Speed 1/10 s to 1/10,000 s
Slow Shutter Yes
Day & Night IR CUT Filter
Digital Noise Reduction 3D DR 2D DNR
WDR 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0* to 360°
Lens
Focal Length Fixed focal lens,dual lens, 2.8 mm
Aperture F1.6
Focus Fixed
Focus Length & FOV 2.8 mm, horizontal FOV: 160", vertical FOV: 70°
Lens Mount M12
Illuminator
White Light & IR Range Up to 30 m
Smart Supplement Light Yes
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
H.264 Type High Profile/Main Profile/Base Profile
H.265 Type High Profile/Main Profile/Base Profile
H.265+ High Profile/Main Profile/Base Profile
Smart Feature-set
Smart Event Human detection
Basic Event Motion detection
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, Email
Max. Resolution 4096 × 1944
Main Stream 50Hz: 20 fps 4096 × 1944
60Hz: 20 fps 4096 × 1944
Sub-Stream 50Hz: 20 fps 1024 x 480: 20 fps 768 × 360
60Hz: 20 fps 1280 × 360: 20 fps 768 × 360
Image Enhancement WDR/HDR/3D DNR/2D DR/HLC/BLC
Image Setting Sotware ore satrosen, brightness, contrast, sharpness, and white balance adjustable by client
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support local storage and NAS (NFS, SMB/CIFS)
Protocols HTTP, RTSP, DHCP, FTP, NTP,ONVIF, P2P, SMITP,RTMP
Client AJ_Client, AC18Pro, Videolink
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Built-in Speaker Power: 3W.MAX. Sound pressure lever:10cm: 100dB.
Reset Key Yes
On-Board Storage Built-in memory card slot, support microSD card,up to 512GB
General
Operating Conditions -30 °C to +65 °C, humidity 95% or less (non-condensing)
Web Client Language
14 languages: English,Russian, German,Italian, Turkish, Korean,Japanese, Traditional Chinese,
Simple Chinese, Ukrainian, Portuguese,Croatian, Polish, Farsi
cuen Consumption and DC 12V, 1 A, max. 10 W ® 5.5X2.1 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W
Protection Level IP66-Each Camera has been tested waterproof
Material Front cover:metal, body:plastic, bracket: plastic
Dimensions Camera: 137.5 × 100mm (5.41" × 3.94")
Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )
Weight Apporx.460g(1.01 lb)
With Package Weight Apporx. 600g(1.32 lb)
Available Model
PG2386IRCS-P(2.8mm 160° /
