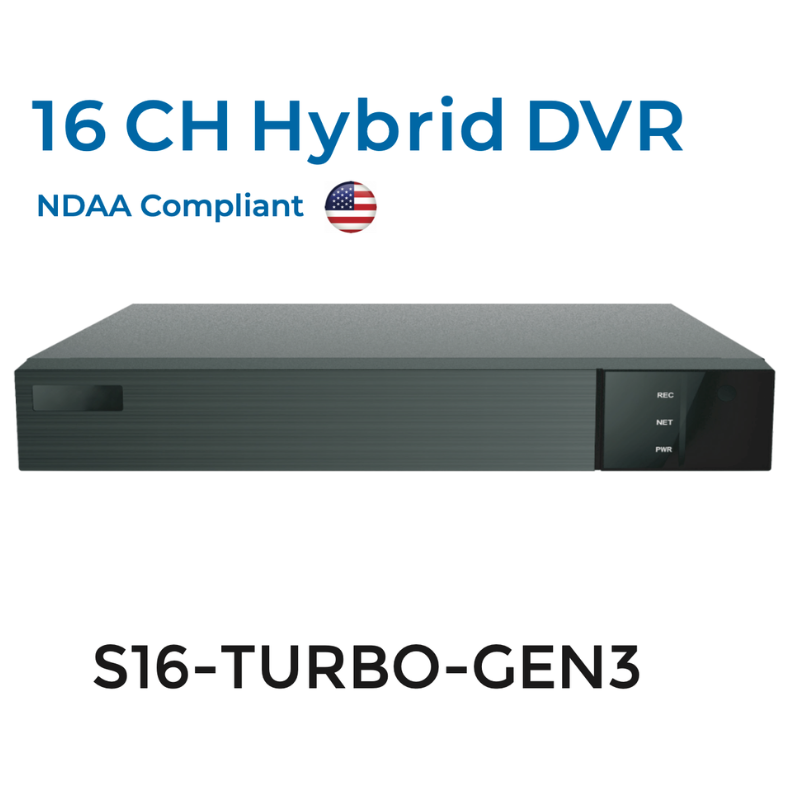

S16-TURBO-GEN3 DVR 16CH TurboHD 1080p + 2IP Hybrid H.265
S16-TURBO-GEN3 DVR 16CH TurboHD 1080p + 2IP Hybrid H.265
S16-TURBO-GEN3 Hybrid DVR with 16 TurboHD channels + 2 IP channels.
Compatible with TVI, CVI, AHD, CVBS, and IP video formats.
Supports H.265 compression for efficient storage and optimized performance.
Features Full HD video output via HDMI and VGA.
Allows remote access through mobile app (SuperLive Plus).
Specifications:
- 16 BNC channels + 2 IP channels (up to 18 total)
- Resolution up to 1080p Lite / 720p
- H.264 / H.265 compression
- 1 audio channel (RCA)
- Supports 1 SATA HDD up to 8TB
- HDMI / VGA video output
- Network RJ45 (10/100 Mbps)
- Remote viewing via iOS and Android
Ideal for surveillance systems in homes, offices, and commercial applications.
Product features
Product features
Specifications
Camera
Image Sensor 1/2.7" GC5623 CMOS
Min. Illumination Color: 0.05lux @(F1.6), 0 lux with IR light
Shutter Speed 1/10 s to 1/10,000 s
Slow Shutter Yes
Day & Night IR CUT Filter
Digital Noise Reduction 3D DR 2D DNR
WDR 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0* to 360°
Lens
Focal Length Fixed focal lens,dual lens, 2.8 mm
Aperture F1.6
Focus Fixed
Focus Length & FOV 2.8 mm, horizontal FOV: 160", vertical FOV: 70°
Lens Mount M12
Illuminator
White Light & IR Range Up to 30 m
Smart Supplement Light Yes
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
H.264 Type High Profile/Main Profile/Base Profile
H.265 Type High Profile/Main Profile/Base Profile
H.265+ High Profile/Main Profile/Base Profile
Smart Feature-set
Smart Event Human detection
Basic Event Motion detection
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, Email
Max. Resolution 4096 × 1944
Main Stream 50Hz: 20 fps 4096 × 1944
60Hz: 20 fps 4096 × 1944
Sub-Stream 50Hz: 20 fps 1024 x 480: 20 fps 768 × 360
60Hz: 20 fps 1280 × 360: 20 fps 768 × 360
Image Enhancement WDR/HDR/3D DNR/2D DR/HLC/BLC
Image Setting Sotware ore satrosen, brightness, contrast, sharpness, and white balance adjustable by client
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support local storage and NAS (NFS, SMB/CIFS)
Protocols HTTP, RTSP, DHCP, FTP, NTP,ONVIF, P2P, SMITP,RTMP
Client AJ_Client, AC18Pro, Videolink
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Built-in Speaker Power: 3W.MAX. Sound pressure lever:10cm: 100dB.
Reset Key Yes
On-Board Storage Built-in memory card slot, support microSD card,up to 512GB
General
Operating Conditions -30 °C to +65 °C, humidity 95% or less (non-condensing)
Web Client Language
14 languages: English,Russian, German,Italian, Turkish, Korean,Japanese, Traditional Chinese,
Simple Chinese, Ukrainian, Portuguese,Croatian, Polish, Farsi
cuen Consumption and DC 12V, 1 A, max. 10 W ® 5.5X2.1 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W
Protection Level IP66-Each Camera has been tested waterproof
Material Front cover:metal, body:plastic, bracket: plastic
Dimensions Camera: 137.5 × 100mm (5.41" × 3.94")
Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )
Weight Apporx.460g(1.01 lb)
With Package Weight Apporx. 600g(1.32 lb)
Available Model
PG2386IRCS-P(2.8mm 160° /
Dimension
